Drag racing team 'CBR' runs 6.99 1/4ml @ 196mph with MasterPower

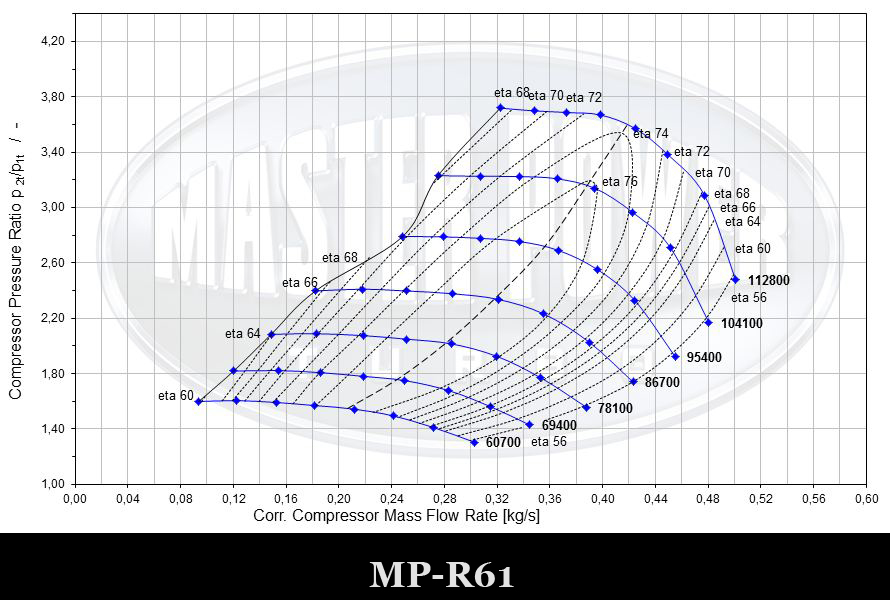

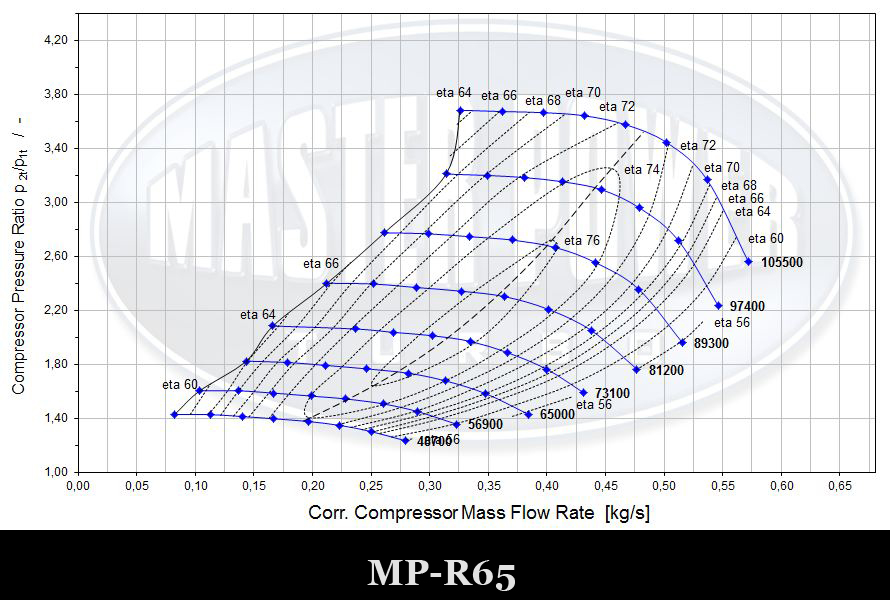

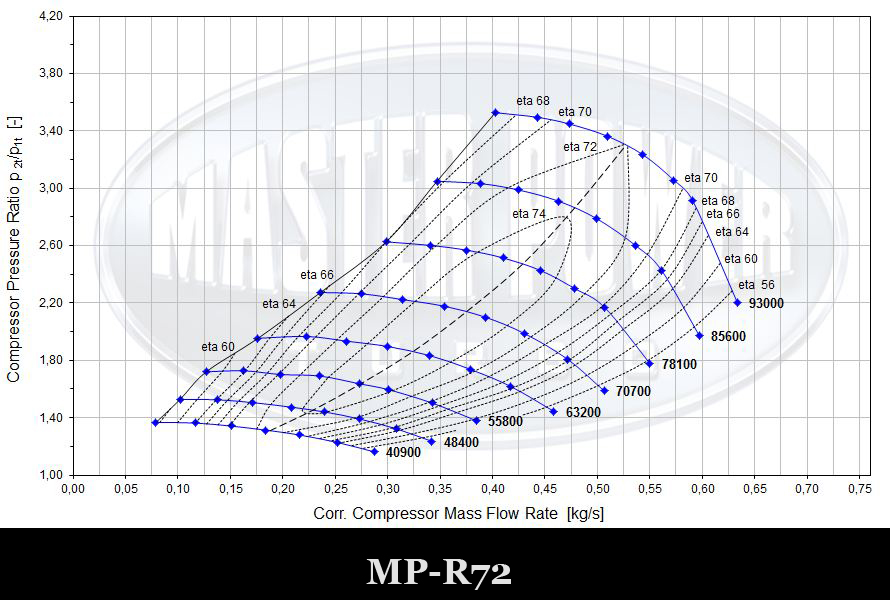

Compressor and Turbine flow maps are now available for public domain.
New CNC Aluminium Compressor Wheels utilised on MP-R models
Frantik is the authorised NZ and Australian distributor dealer for 'MasterPower Turbos' from Borghetti Turbo systems of Brazil. Please contact us for wholesale enquiry. We have a growing stock of Diesel and hi performance turbochargers.
Master Power began turbo production in 1974. Nearly 40 years their focus has been 100% turbo production and development. Today, they are original equipment manufacturers for MTU and Kia and established network with Mahle and Bosch. Master Power has been recognised and review many times positively for its quality, performance and affordability.
The new line MP-R released in october 2011 is an exciting stage. These new models have had many improvements. Utilising CNC billet compressor wheels and newly developed turbine shafts that boast improvements of 5-15% efficiency with wider operating range, Also a low inertia water cooled bearing systems has been developed with focus on oil flow, bearing contact area, tolerances and reduced rotating inertia. These changes have significantly improved response with spool time equivalent to ball bearing units.
MasterPower Racing Turbo Catalogue below....
 |
||
|
|
|
Center housing
MP-R444
MP-R4449
Compressor Spec
44/63mm 49Trim Forged CNC Aluminium
44/63mm 49trim Forged CNC Aluminium
46/55mm 70trim 12Bld
MP350c, 360 Thrust, LI journals, Water cooled.
Turbine Specs
MP210 360 Thrust, LI journals, oil cooled
49/61mm 66trim 10Bld
A/R Options
T2 .42, T2 .65
T3 .48, .63, .94
Options
 |
||
|
|
|
Center housing
MP-R474
Compressor Spec
47/61mm 60Trim Forged CNC Aluminium
49/61mm 66trim 10Bld
Turbine Specs
MP350 360 Thrust, LI journals, Water cooled
A/R Options
T3 .48, .63, .94
Options
 |
||
|
|
|
Center housing
MP-R494
49/70mm 49Trim Forged CNC Aluminium
49/61mm 66trim 10Bld
Turbine Specs
MP350 360 Thrust, LI journals, Water cooled
A/R Options
T3 .48, .63, .7, .94
Options
Compressor Spec
 |
||
|
|
|
Center housing
MP-R544
MP-R545
Compressor Spec
54/77mm 49Trim Forged CNC Aluminium
54/77mm 49trim Forged CNC Aluminium
49/61mm 66trim 10Bld
MP350c, 360 Thrust, LI journals, Water cooled.
Turbine Specs
MP350 360 Thrust, LI journals, Water cooled
59/70mm 71trim 12Bld
A/R Options
T3 .48, .63, .7, .94
T3 .48, .63, .7, .84, .94
Options
$980nzd+GST
T4 .68, .81, .96, 1.00
 |
||
|
|
|
Center housing
MP-R594
MP-R595
Compressor Spec
59/84mm 49Trim Forged CNC Aluminium
59/84mm 49Trim Forged CNC Aluminium
49/61mm 66trim 10Bld
MP350c, 360 Thrust, LI journals, Water cooled.
Turbine Specs
MP350 360 Thrust, LI journals, Water cooled
59/70mm 71trim 12Bld
A/R Options
T3 .48, .63, .7, .84, .94
T3 .48, .63, .7, .84, .94
Options
MP-R596
59/84mm 49Trim Forged CNC Aluminium
MP350c, 360 Thrust, LI journals, Water cooled.
64/74mm 76trim 11Bld
T3 .7, .84, .94, .96, 1.00
T4 .68, .81, .96,
T4 .68, .81, .96, 1.00
T4 .68, .81, .96, 1.00
 |
||
|
|
|
Center housing
MP-R615
MP-R616
Compressor Spec
61/88mm 48Trim Forged CNC Aluminium
61/88mm 48Trim Forged CNC Aluminium
59/70mm 71trim 12Bld
MP350c, 360 Thrust, LI journals, Water cooled.
Turbine Specs
MP350 360 Thrust, LI journals, Water cooled
64/74mm 76trim 11Bld
A/R Options
T3 .48, .63, .7, .84, .94
T3 .7, .84, .94, .96, 1.00
Options
MP-R6168
61/88mm 48Trim Forged CNC Aluminium
MP500, 360 Thrust, LI journals, Oil cooled.
68/82mm 69trim 10Bld
T4 1.05, 1.22 split
T4 .68, .81, .96, 1.00
T4 .68, .81, .96, 1.00
 |
||
|
|
|
Center housing
MP-R655
MP-R656
Compressor Spec
65/94mm 48Trim Forged CNC Aluminium
65/94mm 48Trim Forged CNC Aluminium
59/70mm 71trim 12Bld
MP350c, 360 Thrust, LI journals, Water cooled.
Turbine Specs
MP350 360 Thrust, LI journals, Water cooled
64/74mm 76trim 11Bld
A/R Options
T3 .48, .63, .7, .84, .94,
T3 .48, .63, .7, .84, .94,
Options
MP-R6568
65/94mm 48Trim Forged CNC Aluminium
MP500, 360 Thrust, LI journals, Oil cooled.
68/82mm 69trim 10Bld
T4 1.05, 1.22 split
T4 .68, .81, .96, 1.00
T4 .68, .81, .96, 1.00
 |
||
|
|
|
Center housing
MP-R676
MP-R6771
Compressor Spec
67/99mm 46Trim. Cast Aluminium
67/99mm 46Trim. Cast Aluminium
68/82mm 69trim 10Bld
MP500, 360 Thrust, LI journals, Oil cooled.
Turbine Specs
MP500, 360 Thrust, LI journals, Oil cooled.
71/82mm 76trim 10Bld
A/R Options
T4 1.05, 1.22 split
T4 1.05, 1.22 split
Options
MP-R6777
67/99mm 46Trim. Cast Aluminium
MP500, 360 Thrust, LI journals, Oil cooled.
77/88mm 78trim 10Bld
T4 1.05, 1.22 split
 |
||
|
|
|
Center housing
MP-R726
MP-R7271
Compressor Spec
72/103mm 49Trim. Cast Aluminium
72/103mm 49Trim. Cast Aluminium
68/82mm 69trim 10Bld
MP500, 360 Thrust, LI journals, Oil cooled.
Turbine Specs
MP500, 360 Thrust, LI journals, Oil cooled.
71/82mm 76trim 10Bld
A/R Options
T4 1.05, 1.22 split
T4 1.05, 1.22 split
Options
MP-R7277
72/103mm 49Trim. Cast Aluminium
MP500, 360 Thrust, LI journals, Oil cooled.
77/88mm 78trim 10Bld
T4 1.05, 1.22 split
 |
||
|
|
|
Center housing
MP-R766
MP-R7671
Compressor Spec
76/103mm 55Trim. Cast Aluminium
76/103mm 55Trim. Cast Aluminium
68/82mm 69trim 10Bld
MP500, 360 Thrust, LI journals, Oil cooled.
Turbine Specs
MP500, 360 Thrust, LI journals, Oil cooled.
71/82mm 76trim 10Bld
A/R Options
T4 1.05, 1.22 split
T4 1.05, 1.22 split
Options
MP-R7677
76/103mm 55Trim. Cast Aluminium
MP500, 360 Thrust, LI journals, Oil cooled.
77/88mm 78trim 10Bld
T4 1.05, 1.22 split
